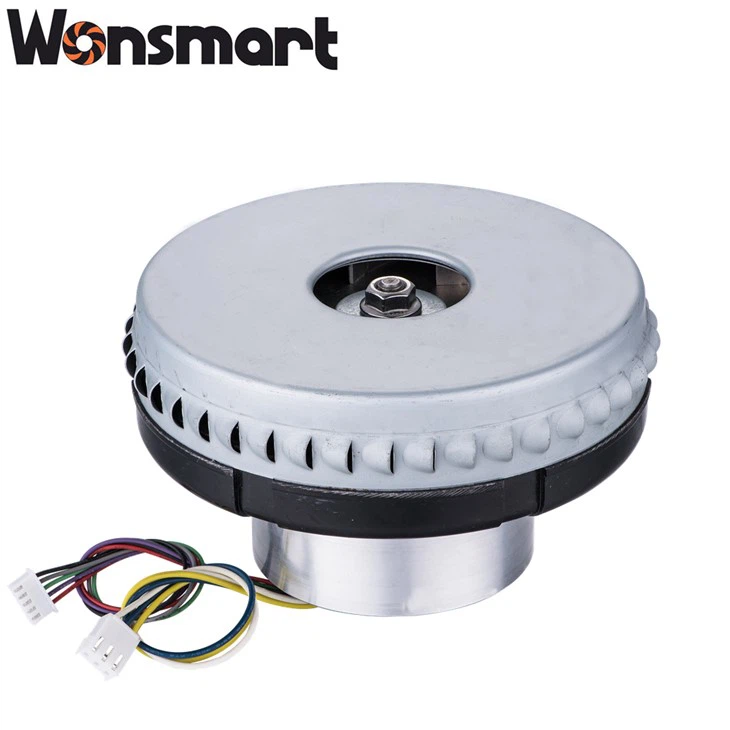

140*110mm 24V/48V high airflow 130m/h centrifugal blower
Suitable for air cushion machine/CPAP machine/fuel cell/medical equipment.
Blower features
| Brand name: Wonsmart --140*110mm 61CFM 8.5Kpa industrial turbo blower 24V/48V for vacum cleaner | ||||||||
| Blower type: Centrifugal fan | Voltage:24vdc/48vdc | |||||||
| Bearing: NMB ball bearing | Type: Centrifugal Fan | |||||||
| Applicable Industries: Fuel cell machine | Electric Current Type: DC | |||||||
| Blade Material:Aluminum | Mounting: Ceiling Fan | |||||||
| Place of Origin:Zhejiang, China | Controller: external | |||||||
| Certification: CE, RoHS,ETL,Reach | Warranty: 1 Year | |||||||
| After-sales Service Provided: Online support | Life time(MTTF): >20,000hours (under 25 degree C) | |||||||
| Weight: 1.1kgs | Housing material:Aluminum | |||||||
| Motor type:Three Phase DC Brushless Motor | Unit Size:140mm*110mm | |||||||
Product parameters
| Part No. | WS140110BS-24-180-X300 | WS140110BS-48-150-NZ02 | ||||||
| Voltage | 24VDC | 48VDC | ||||||
| At Max airflow | ||||||||
| Speed | 15,500rpm | 15,000rpm | ||||||
| Current | 13A | 36A | ||||||
| Air flow | 60m3/h | 140m3/h | ||||||
| Noise | 92dba | |||||||
| At Max air pressure | ||||||||
| Speed | 15,000rpm | 18,500rpm | ||||||
| Current | 8A | 6A | ||||||
| Air pressure | 7.5kPA | 8.5Kpa | ||||||

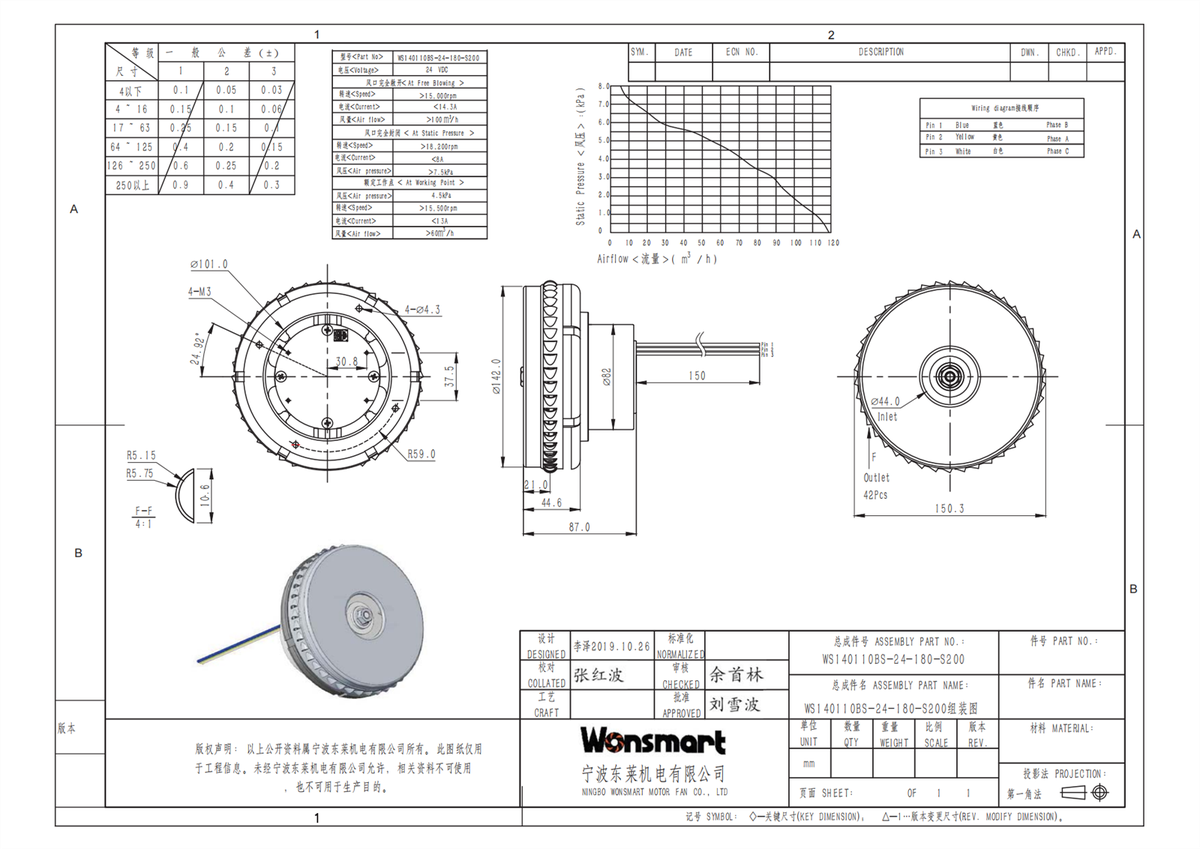

Drawing
WS140110BS-24-180-X300
WS140110BS-48-150-NZ02
Product description
Introducing our high airflow blower, the WS140110BS! With dimensions of 140mm by 110mm, this blower is designed to maximize airflow for efficient operation. It operates on a 24 or 48VDC voltage and boasts an impressive airflow of 60m3/h (37CFM) and 140m3/h, respectively.
The blower is equipped with a centrifugal blower type, which allows it to produce a low-speed airflow that can be directed through a dispersed outlet. This blower also has an airflow inlet at the top and a driver located externally.
One of the standout features of this product is its high airflow capabilities, making it an ideal choice for the vacuum cleaner industry. With a voltage range of 7.5kpa-8.5kpa, this blower offers excellent suction power to clean even the most stubborn dust and debris.
In conclusion, the WS140110BS blower is a top-tier product that stands out for its high airflow capabilities and versatility. It's perfect for industries that require high suction power such as vacuum cleaners.
Get your very own WS140110BS blower today and experience its superior performance firsthand!
Related products
|
|
|
|
|
|
| Part No. | WS7040-12-X200N | WS9250-24-24-X200 | S10690-48-240-X300 | S145110-48-150-X300 |
| Size | 70mm*40mm | 92mm*50mm | 106mm*90mm | 145mm*110mm |
| Voltage | 12VDC | 24VDC | 48VDC | 48VDC |
| Max.Air flow | 25m3/h | 57m3/h | 120m3/h | 33m3/h |
| Max.Air pressure | 6Kpa | 8.5Kpa | 10Kpa | 32Kpa |
| Application | Can be used on Cpap ventilator medical devices | Can be used for air cushion machines | Can be used in vacuum cleaners | Can be used in fuel cells |
| Link: | https://www.wonsmartblower.com/medical-blower/cpap-blower/12v-dc-high-speed-electric-air-blower.html | https://www.wonsmartblower.com/medical-blower/bipap-blower/high-capacity-airflow-medical-blower.html | https://www.wonsmartblower.com/home-appliance-blower/vacum-cleaner-blower/portable-vacum-cleaner-suction-blower.html | https://www.wonsmartblower.com/medical-blower/air-bed-blower/48v-high-pressure-brushless-fuel-cell.html |
What Is Centrifugal Fan?
A centrifugal fan is a mechanical device for moving air or other gases in a direction at an angle to the incoming fluid. Centrifugal fans often contain a ducted housing to direct outgoing air in a specific direction or across a heat sink; such a fan is also called a blower, blower fan, biscuit blower, or squirrel-cage fan (because it looks like a hamster wheel). These fans increase the speed and volume of an air stream with the rotating impellers.
