Wonsmart's 100W-200W DC air blowers deliver high-efficiency performance, making them ideal for applications requiring precise airflow control, such as fuel cells, medical devices, and environmental monitoring systems. These brushless DC blowers are designed for long operational life with minimal maintenance, thanks to their durable construction and advanced motor technology. With high airflow rates and adjustable speed control through PWM, potentiometer, or 0-5V input, Wonsmart blowers provide reliable and energy-efficient solutions for industries worldwide.
WS8045-24-X200
| Voltage | 24 vdc |
| Air flow | 47m3/h (27cfm) |
| Air pressure | 15.7 kpa |
| Max.Current | 8a |
| Max.power | 192W |
| Max.Speed | 50,000 rpm |
| Motor type | Three Phase Brushless |
| Driver type | External Driver |
| MTTF | 15,000hours |
WS9250-24-240-X200
| Voltage | 24 vdc |
| Air flow | 57m3/h (33.54cfm) |
| Air pressure | 8.5 kpa |
| Max.Current | 7.2a |
| Max.power | 172.8W |
| Max.Speed | 31,000 rpm |
| Motor type | Three Phase Brushless |
| Driver type | External Driver |
| MTTF | 25,000hours |
WS9250C-24-240-X200
| Voltage | 24 vdc |
| Air flow | 57m3/h (33.54cfm) |
| Air pressure | 8.5 kpa |
| Max.Current | 7.2a |
| Max.power | 172.8W |
| Max.Speed | 31,000 rpm |
| Motor type | Three Phase Brushless |
| Driver type | External Driver |
| MTTF | 25,000hours |
WS9260-24-250-X200
| Voltage | 24 vdc |
| Air flow | 130m3/h (76.5cfm) |
| Air pressure | 7.5 kpa |
| Max.Current | 8a |
| Max.power | 192W |
| Max.Speed | 29,000 rpm |
| Motor type | Three Phase Brushless |
| Driver type | External Driver |
| MTTF | 15,000hours |

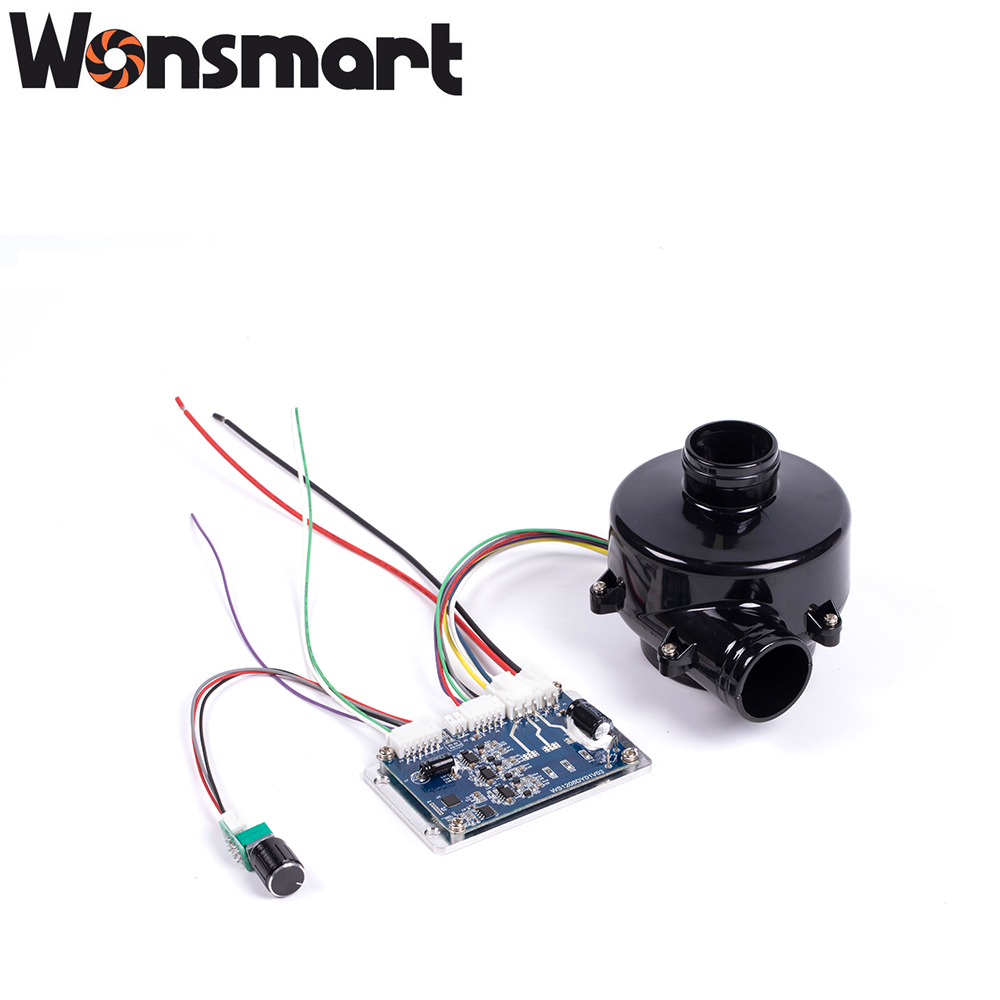

WS9260B-24-250-X200
| Voltage | 24 vdc |
| Air flow | 80m3/h (47cfm) |
| Air pressure | 7.5 kpa |
| Max.Current | 15a |
| Max.power | 180W |
| Max.Speed | 28,000 rpm |
| Motor type | Three Phase Brushless |
| Driver type | External Driver |
| MTTF | 15,000hours |
WS9290-24-220-X200
| Voltage | 24 vdc |
| Air flow | 47m3/h (27.6cfm) |
| Air pressure | 12.5 kpa |
| Max.Current | 7.8a |
| Max.power | 187.2W |
| Max.Speed | 28,500 rpm |
| Motor type | Three Phase Brushless |
| Driver type | External Driver |
| MTTF | 15,000hours |
WS4235F-24-240-X200
| Voltage | 24 vdc |
| Air flow | 70m3/h (41cfm) |
| Air pressure | 7 kpa |
| Max.Current | 6.6a |
| Max.power | 158.4W |
| Max.Speed | 28,000 rpm |
| Motor type | Three Phase Brushless |
| Driver type | External Driver |
| MTTF | 25,000hours |
WS10690-24-200-X300
| Voltage | 24 vdc |
| Air flow | 100m3/h (58.8cfm) |
| Air pressure | 7 kpa |
| Max.Current | 8a |
| Max.power | 192W |
| Max.Speed | 25,000 rpm |
| Motor type | Three Phase Brushless |
| Driver type | External Driver |
| MTTF | 15,000hours |
WS9290B-24-220-X300
| Voltage | 24 vdc |
| Air flow | 47m3/h (27.6cfm) |
| Air pressure | 12.5 kpa |
| Max.Current | 7.8a |
| Max.power | 187.2W |
| Max.Speed | 28,500 rpm |
| Motor type | Three Phase Brushless |
| Driver type | External Driver |
| MTTF | 15,000hours |
