Wonsmart Mini Air Blower Fan WS9260
1. Factory Direct Sales: Our mini blower fan 24v is directly sold by our factory, ensuring the lowest price possible. We also provide a comprehensive after-sales service guarantee, ensuring that you receive the best value for your money.
2. Accurate Product Parameters: All of our mini blower fans have undergone rigorous testing to ensure that they meet the highest standards of performance and reliability. You can trust that our products will consistently deliver the results you need.
3. Certifications: Our mini blower fan 24v is rigorously tested and certified to meet international standards, including CE, ISO9001, REACH, ROHS, and more. Rest assured that our products are of the highest quality.
4. Professional R&D Team: Our experienced and professional R&D team is dedicated to providing you with the best possible products and services. We offer ODM & OEM design services to meet your unique needs and requirements.
5. Compact and Efficient: Our mini blower fan 24v is compact and efficient, making it the perfect choice for a variety of applications. With its low power consumption and high performance, it's an ideal solution for anyone looking for a high-quality, cost-effective product.
Blower features
| Model | Voltage | Max.air flow | Max.air pressure | Current range | Power range | Speed range | Noise | Weight | MTTF |
Operating Temperature range |
Motor type | Bearing type | Hall sensor | |
| VDC | m3/h | Kpa | A | W | rpm | dba | g | hours | ℃ | |||||
 |
WS9260-24-250-X200 | 24 | 130 | 7..5 | 4.3-8 | 103.2-192 | 25000-29000 | 62 | 420 | 25000 | -20~+60 | Three phase brushless | NMB Ball bearing | 120 |
 |
WS9260B-24-240-X200 | 24 | 80 | 7.5 | 5-8 | 120-192 | 23000-28000 |

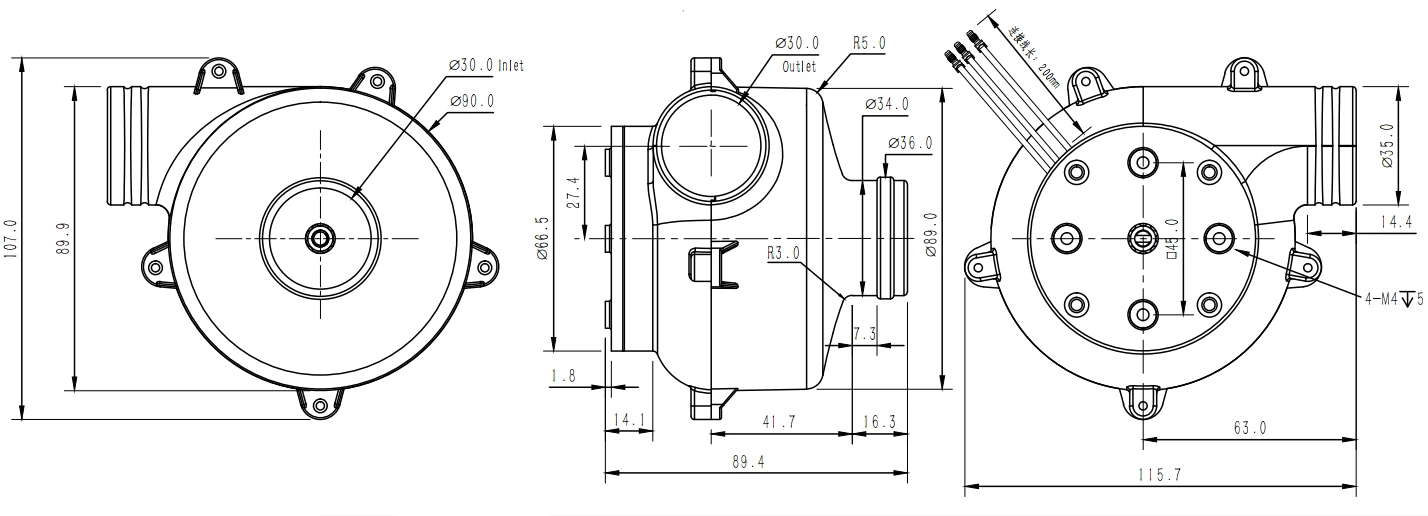

Drawing
Tips:
Overall size(L*W*H) 89.9mm*115.7mm*89.4mm
Convex platform(W*H) 89mm*16.3mm
Outlet φ30mm
inlet φ30mm

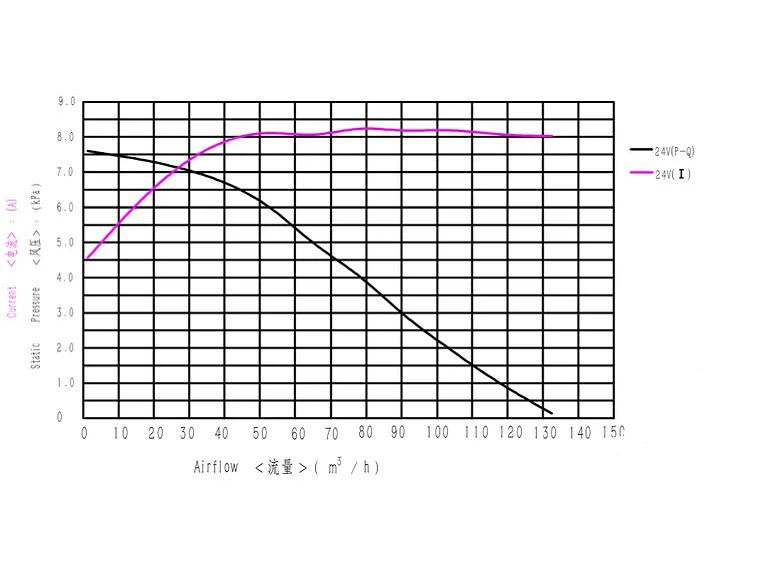

Blower Performance
WS9260-24-250-x200
| @Free-blowering | @At static pressure | @At working Point | |||||||
| Speed | Current | Airflow | Speed | Current | Air pressure | Air pressure | Speed | Current | Air flow |
| 25000rpm | 8a | 130m3/h | 29000rpm | 4.3a | 7.5kpa | 5kpa | 25000rpm | 8a | 65m3/h |

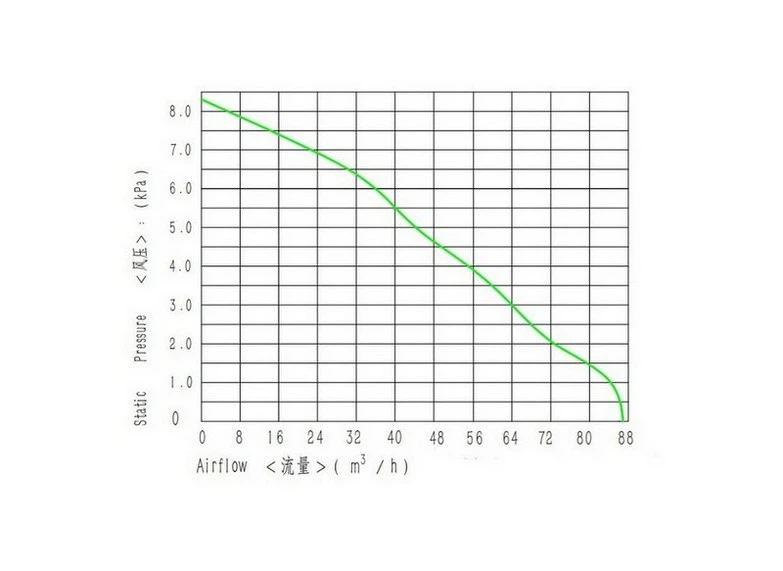

WS9260B-24-240-X200
| @Free-blowering | @At static pressure | @At working Point | |||||||
| Speed | Current | Airflow | Speed | Current | Air pressure | Air pressure | Speed | Current | Air flow |
| 23000rpm | 8a | 80m3/h | 28000rpm | 5a | 7.5kpa | 5.0kpa | 24000rpm | 8a | 40m3/h |

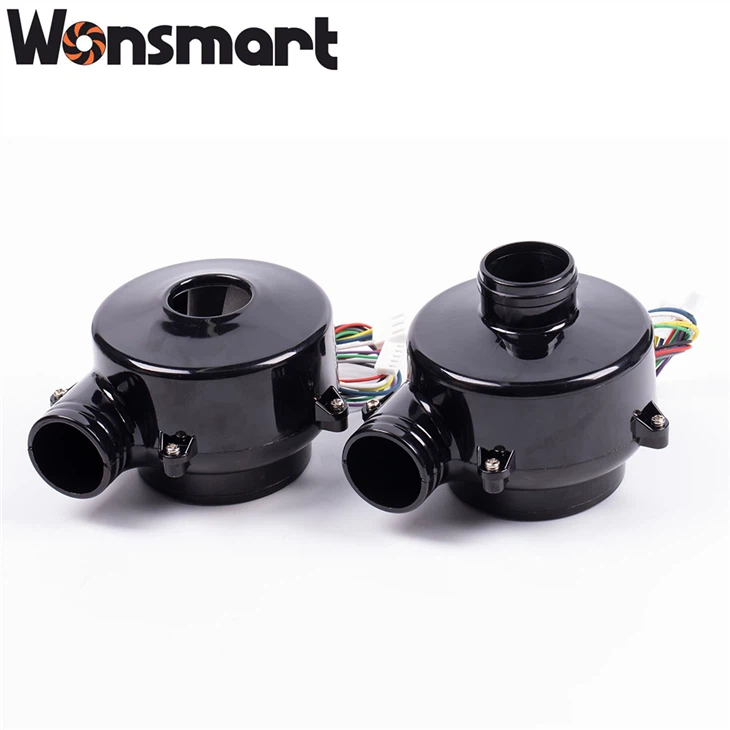

Product description
Our mini air blower fan 24VDC is a factory-direct product that boasts a low price and the expertise of our professional R&D team. Equipped with a three-phase brushless motor and NMB ball bearings, this fan offers dependable performance. It has a class F insulation rating, IP54 protect class, and an operation temperature range of -20℃ to +60℃. With an MTTF of 15000 hours and a speed of 1HZ=30r/min, this fan is built to last. Choose our 24V version and pair it with a 24VDC-8A power supplier for optimal results.
Dc brushless advantages
Direct current brushless fans have several advantages over brushed fans. These advantages include longer lifespan, lower noise levels, and higher efficiency. Brushless fans are also more reliable due to the absence of brushes, which can wear out over time and cause the fan to malfunction. This makes brushless fans a better choice for applications where reliability and longevity are important.
In addition to these benefits, brushless fans are also more energy-efficient than their brushed counterparts. This is because brushless fans use electronic commutation to control the motor, which consumes less power than the mechanical commutation used in brushed fans. This results in a lower overall power consumption and a reduction in operating costs.
Furthermore, brushless fans are able to operate at higher speeds and produce greater airflow than brushed fans. This is due to the design of the brushless motor, which allows for smoother and more precise control over the fan's speed and power output.
Production process
Our service:
- 1. Online Support:We offer robust online support to answer any questions or concerns they may have.
- 2. Professional Technicians: Our team of highly trained professionals are experts in their field and are dedicated to providing our customers with efficient and effective solutions to any issues they may encounter.
- 3. Quick Response: We know time is of the essence when dealing with technical issues. We always strive to provide prompt, reliable service to minimize any downtime for our clients.
If you have any special requirements or demands,Please feel freeto contact us. We are glad to offer you our best service!
