Brushless Dc Blower With Convex Platform 24vdc

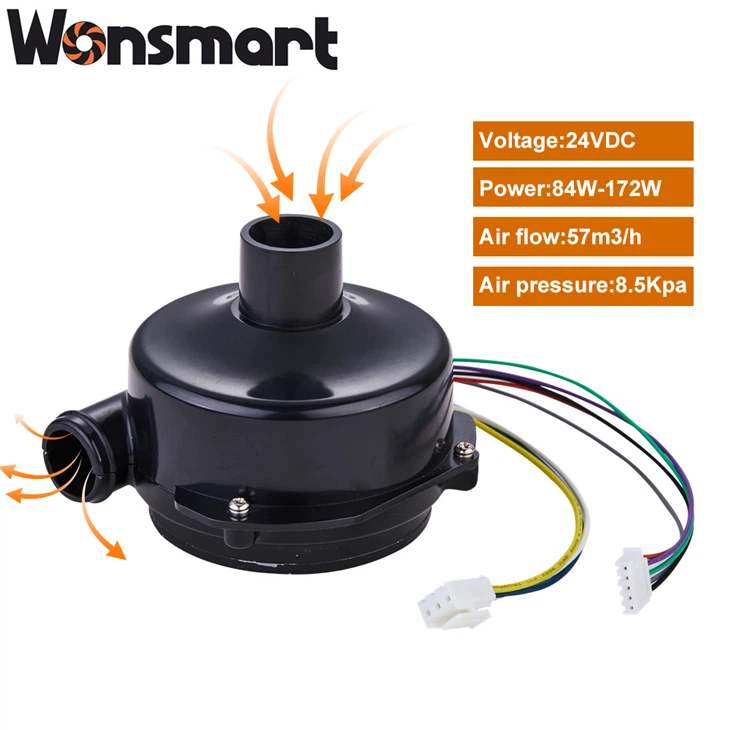

1. The mini air blower from wonsmart features a raised inlet port that can be connected to a duct for easy use.

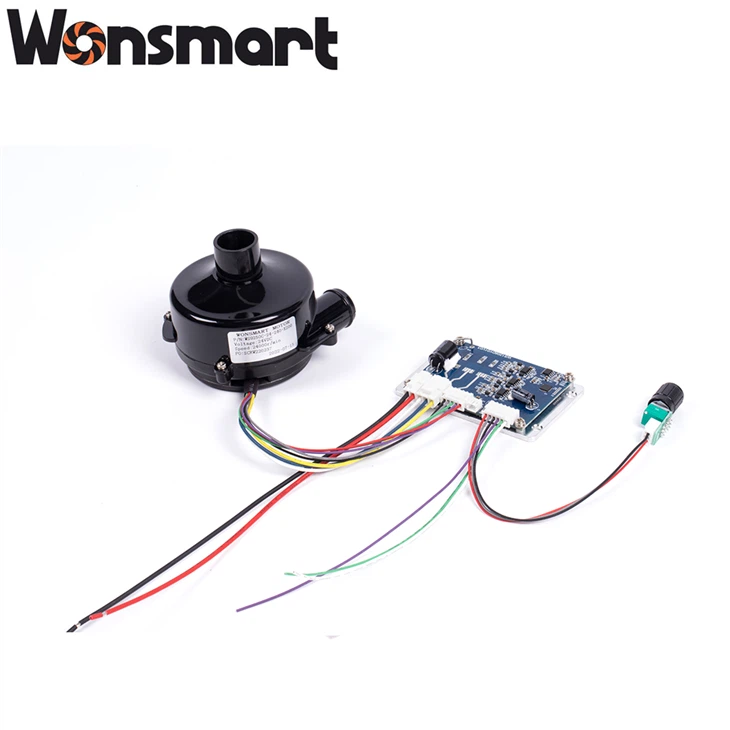

2. This blower requires a driver to operate and is a DC brushless fan.

3. The compact size of this blower makes it easy to integrate into systems with a diameter of 92mm*50mm and outlet diameter of 17mm.

4. With a lifespan of 25,000 hours of continuous use at 25°C, this blower is built to last.

Model

Voltage

Max.air flow

Max.air pressure

Current range

Power range

Speed range

Noise

Weight

MTTF

Operating Temperature range

Motor type

Bearing type

Hall sensor

VDC

m3/h

Kpa

A

W

rpm

dba

g

hours

℃

WS9250C-24-240-X200

24

57

8.5

3.5-7.2

84-172.8

24000-31000

73

420

25000

-20~+60

Three phase brushless

NMB Ball bearing

120

WS9250-24-240-X200

24

57

8.5

3.5-7.2

84-172.8

24000-31000

Tips:

Overall size(L*W*H)    91.4mm*90.6mm*57.5mm

Convex platform(W*H)  80.8mm*20mm

Outlet    φ17mm

inlet      φ22.5mm

WS9250C-24-240-X200

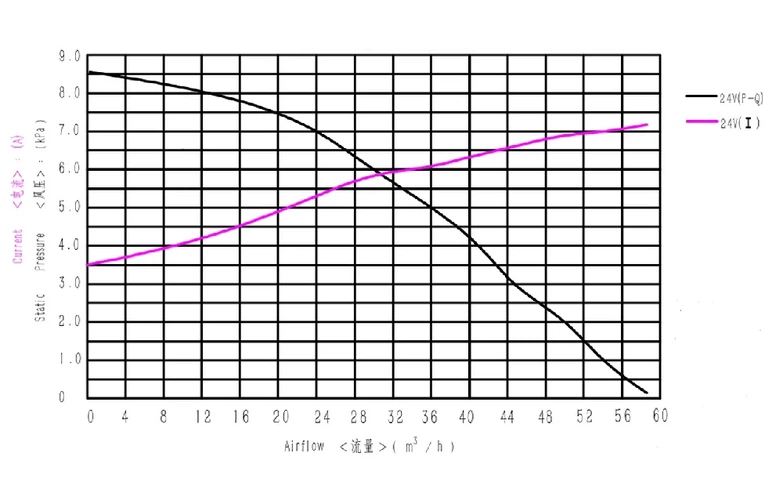

@Free-blowering			@At static pressure			@At working Point
Speed	Current	Airflow	Speed	Current	Air pressure	Air pressure	Speed	Current	Air flow
24000rpm	7.2a	57m3/h	31000rpm	3.5a	8.5kpa	6kpa	27000rpm	5.8a	30m3/h

WS9250-24-240-X200

@Free-blowering			@At static pressure			@At working Point
Speed	Current	Airflow	Speed	Current	Air pressure	Air pressure	Speed	Current	Air flow
24000rpm	7.2a	57m3/h	31000rpm	3.5a	8.5kpa	6kpa	27000rpm	5.8a	30m3/h

Please attention:Model WS9250 and model WS9250C only have the appearance shape difference, the performance parameters are the same.

1. The Wonsmart Mini Air Blower features a convex air inlet that can be connected to a duct for easy operation.

2. This is a DC brushless blower that requires a driver to function.

3. Measuring just 92mm in diameter and 50mm in height, this blower is compact and its outlet has a diameter of 17mm.

4. It has a continuous operating time of up to 25,000 hours at temperatures of up to 25°C.

5. A must-have for anyone in need of a small, efficient blower for their project or application.

DC brushless motors are a variation of the traditional DC motor design that eliminates the need for brushes and a commutator. Instead, they rely on a complex control system to manage the flow of current and create a rotating magnetic field.

One of the primary advantages of DC brushless motors is their long lifespan. Since there are no brushes to wear out, these motors can run for thousands of hours without needing any significant maintenance. This makes them ideal for use in applications where extended operational lifespan is essential, such as in robotics, electric vehicles, and industrial machinery.

DC brushless motors are also highly efficient, thanks to their advanced control systems. By regulating the current flow and the speed of the rotating magnetic field, these motors can achieve high levels of efficiency and reduce energy consumption. This makes them an ideal choice for applications where energy efficiency is a top priority, such as in HVAC systems, pumps, and fans.

Another significant advantage of DC brushless motors is their precise control systems. With advanced electronic control systems, these motors can achieve precise speed and torque control, making them ideal for use in robotics and other applications where precise movement is required.

• 1. Online Support:We offer robust online support to answer any questions or concerns they may have.

• 2. Professional Technicians: Our team of highly trained professionals are experts in their field and are dedicated to providing our customers with efficient and effective solutions to any issues they may encounter.

• 3. Quick Response: We know time is of the essence when dealing with technical issues. We always strive to provide prompt, reliable service to minimize any downtime for our clients.

If you have any special requirements or demands,Please feel freeto contact us. We are glad to offer you our best service!
