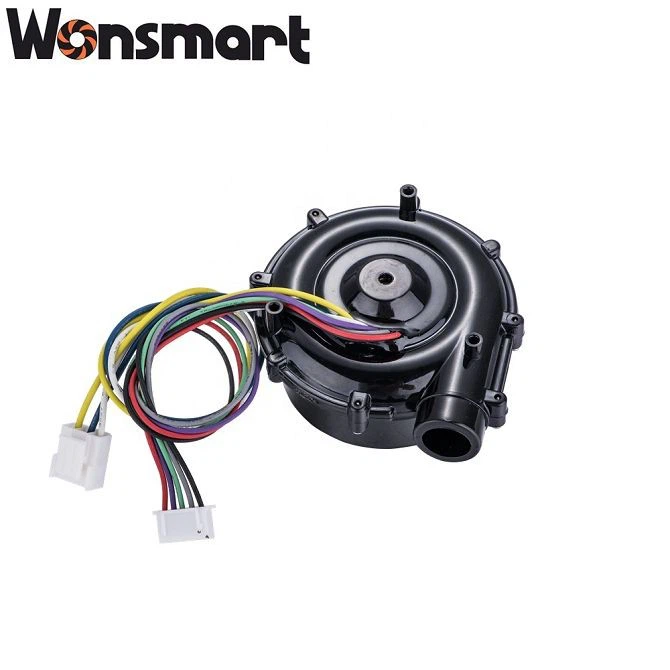

| 12v EC centrifugal blower fans WS7040-12-X200 |
High velocity industrial blower, designed with small size and a diameter of 70mm for efficient air flow. This blower can achieve a high rotation speed of 43000rpm. The service life of the high velocity industrial blower can reach 10,000hours in a clean environment of 25℃
Our blower is a three-phase brushless DC blower, which means that its speed adjustment is more precise and flexible, with better control performance, and needs to be used in conjunction with the drive. We provide matching driver.
| Blower features |
Blower Features
| Products name | High velocity industrial blower | High velocity industrial blower |
| Products model | WS7040-12-X200 | WS7040-24-V200 |
| Products material | Plastic | Plastic |
| Operating voltage | 12VDC | 24VDC |
| Rated air flow | 14.5CFM | 15CFM |
| Rated air pressure | 611 mmH2O | 662 mmH2O |
| Weight | 78g | 78g |
| Motor Pole Pairs | 1 | 1 |
| Resistance-phase to phase | 0.9[ohm] | 1.6[ohm] |
| Induction-phase to phase | 0.14-0.15mH | 0.5-0.6mH |
| Protect Class | IP20 | IP20 |
| Driver type | WS1208DY01V03-SRP008 | WS2403DY01V04 |
| Drawing |
| DC brushless blower advantage |
1. This high velocity industrial blower has a compact size with a diameter of only 70mm.
2. With a powerful motor that can reach 43000rpm,
3. Designed as a three-phase, brushless DC blower, this product is highly efficient and reliable for use in a variety of industrial applications.
4. To ensure proper performance, we offer compatible drivers with this blower.
5. In a clean environment of 25°C, this blower has a lifespan of up to 10000 hours
esign.
