Products Description
Product Drawing
Basic feature
| Product Name | WS7040AL-12-X200 | WS7040AL-24-V200 |
| Voltage | 12 vdc | 24 vdc |
| Airflow | 19m3/h | 21m3/h |
| Air pressure | 5.5 kpa | 6.0 kpa |
| Max.Speed | 42,500 rpm | 41,000 rpm |
| Max.Current | 2.4A | 1.7A |
| Max. power | 54W | 67.2W |

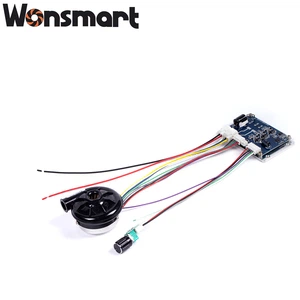

| Driver Type | External driver | External driver |
| Motor Type | Three phase brushless | Three phase brushless |
Products Drawing

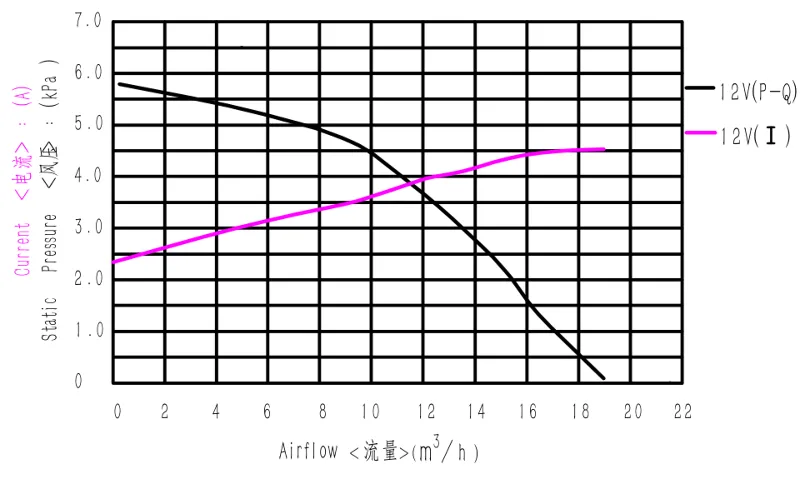

Products Curve
WS7040AL-12-X200
| Free-blowing | |
| Speed | 34,000 rpm |
| Current | 4.5A |
| Air flow | 19 m3/h |
| At static pressure | |
| Speed | 42,500 rpm |
| Current | 2.4 A |
| Air pressure | 5.5 Kpa |
| At working point | |
| Air pressure | 4.0 Kpa |
| Speed | 37,000 rpm |
| Current | 3.8A |
| Air flow | 11 m3/h |
wS7040AL-24-V200
| Free-blowing | |
| Speed | 37,000 rpm |
| Current | 2.8A |
| Air flow | 21 m3/h |
| At static pressure | |
| Speed | 41,000 rpm |
| Current | 1.7 A |
| Air pressure | 6.0 Kpa |
| At working point | |
| Air pressure | 5.0 Kpa |
| Speed | 40,000 rpm |
| Current | 2.0A |
| Air flow | 10.0 m3/h |
Products Description

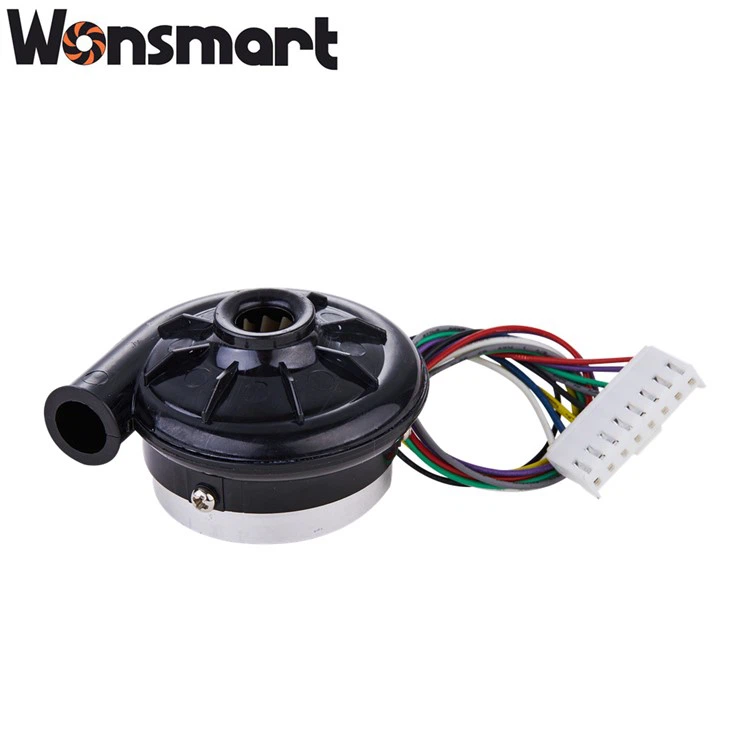

Our low-noise fan delivers exceptional airflow and performance, with a maximum airflow rate of 21m³/h and a maximum wind pressure of 6.0kpa. Its high quality and reliability is ideal for use in medical equipment, especially those that require a reliable and efficient air blower, like CPAP machines.

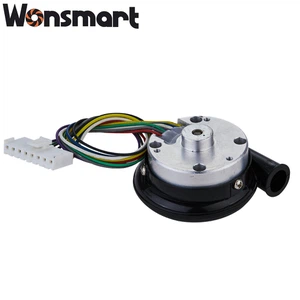

At the heart of the Brushless DC Blower WS7040AL-24-V200 lies advanced brushless motor technology. This technology is specially engineered to provide high efficiency and low noise performance. With its energy-efficient design, this air blower offers excellent performance along with lower power consumption. It enables our low noise fan to deliver exceptional air flow performance while operating quieter than most traditional air blowers on the market.
Ease of installation and operation is also an important feature of our low noise fan. With its compact and lightweight design, the Brushless DC Blower WS7040AL-24-V200 is easy to install in a wide range of medical equipment. Additionally, its speed and airflow can easily be adjusted, thanks to its advanced control system. This feature allows our low noise fan to adapt to different applications and environments, making it a highly versatile air blower.
