7515 Small Blower Fan, 75X70X15mm Blower Fan, Turbo Fan, 5V/12V/24V, DC Centrifugal Fan, Sleeve or 2-Ball Bearing

7515 Small Blower Fan, 75X70X15mm Blower Fan, Turbo Fan, 5V/12V/24V, DC Centrifugal Fan, Sleeve or 2-Ball Bearing

60mm diameter high pressure 5.5 Kpa 12v EC centrifugal brushless DC fans rework soldering station.
Send Inquiry

Product Introduction

Our products are mature and of high quality, our small blower fan, air ring blower, turbo blower are sold well at home and abroad. We have created a large number of excellent achievements, which are well received by the majority of users, thus establishing our firm position in the industry. We hope to constantly surpass ourselves, surpass others, and strive to achieve new leaps and breakthroughs. As an enterprising and vigorous development enterprise, we continue to push through the old and bring forth the new. At present, we are marching forward in a new era and striding on a new journey with confidence and boldness.

12v EC centrifugal blower fans WS7040-12-X200



High velocity industrial blower, designed with small size and a diameter of 70mm for efficient air flow. This blower can achieve a high rotation speed of 43000rpm. The service life of the high velocity industrial blower can reach 10,000hours in a clean environment of 25℃



Our blower is a three-phase brushless DC blower, which means that its speed adjustment is more precise and flexible, with better control performance, and needs to be used in conjunction with the drive. We provide matching driver.



Blower features





 Blower Features
Products name High velocity industrial blower High velocity industrial blower
Products model WS7040-12-X200 WS7040-24-V200
Products material Plastic Plastic
Operating voltage 12VDC 24VDC
Rated air flow 14.5CFM 15CFM
Rated air pressure 611 mmH2O 662 mmH2O
Weight 78g 78g
Motor Pole Pairs 1 1
Resistance-phase to phase 0.9[ohm] 1.6[ohm]
Induction-phase to phase 0.14-0.15mH 0.5-0.6mH
Protect Class IP20 IP20
Driver type WS1208DY01V03-SRP008 WS2403DY01V04

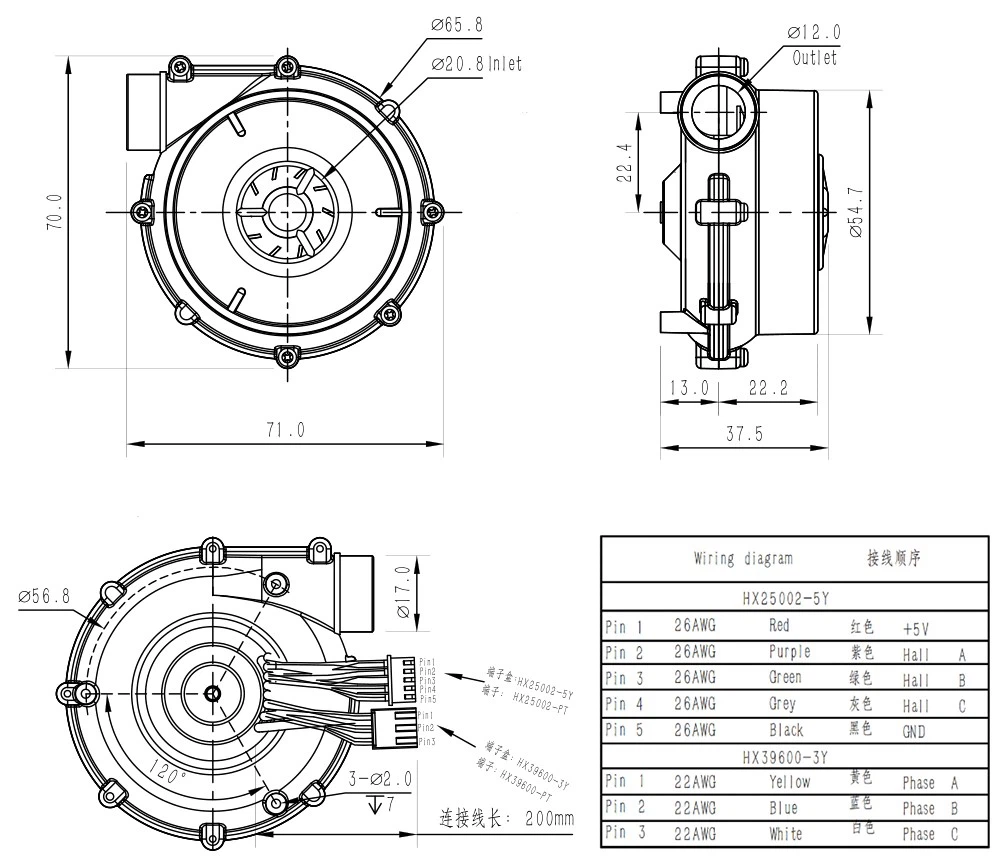

Drawing



brushless dc blower

DC brushless blower advantage



1. This high velocity industrial blower has a compact size with a diameter of only 70mm.


2. With a powerful motor that can reach 43000rpm,


3. Designed as a three-phase, brushless DC blower, this product is highly efficient and reliable for use in a variety of industrial applications.


4. To ensure proper performance, we offer compatible drivers with this blower.


5. In a clean environment of 25°C, this blower has a lifespan of up to 10000 hours

esign.

Our manufacturing process and technology have always been in an excellent position, which makes our 7515 Small Blower Fan, 75X70X15mm Blower Fan, Turbo Fan, 5V/12V/24V, DC Centrifugal Fan, Sleeve or 2-Ball Bearing durable and has won unanimous praise and trust from users. Our core team has keen market insight, innovation and execution, and has accumulated a deep industry heritage. Our test equipment has advanced technology, high precision, and meets the standard requirements. It provides advanced testing means for product performance testing and quality control.
