Electric DC High Flow Fans Centrifugal Blower Ocean Marine Blowers

We use new mechanism and new system to stimulate vitality, and make the manufacturing of blower cpap, High Pressure EC Blower Fan for Bipap, hot air blower small into an important industry and a new driving force for development. We attach great importance to staff training and development, and cultivate a team of international talents. According to the market demand, our company improves the product quality, improves the packaging, reduces the production cost, improves the product service, abides by the credit and performs the contract, so as to attract more users and improve the product market share. "Focus, service, dream" is our philosophy, and we persist in moving forward with the spirit of going beyond ourselves.

15 Kpa Low noise high pressure EC blower fan for Bipap and high pressure cpap blower.

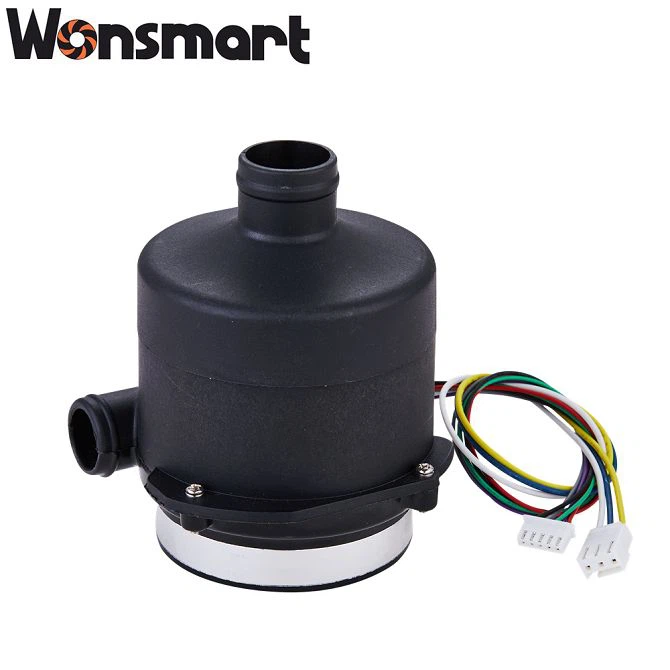

(1)WS9290B-24-220-X300blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 20,000hours at 20degree C environmental temperature.

(2)This blower needs no maintence;

(3)This blower drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily.

(4)Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.

This blower can be widely used onto air pollution detector,air bed,air cushion machine and ventilators.

This blower can run at CCW direction only.Reverse the impeller running direction can not change the air direction.

Filter onto the inlet to protect the blower from dust and water.

Keep the environmental temperature as low as possible to make the blower life time longer.

Q: When can I get the price?

A: Usually we quote within 8 hours after we get your inquiry.

Q: What’s your MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.

Q: How long is your delivery time?

A: The general delivery time is 30-45 days after receiving your order confirmation. Anther, if we have the goods in stock, it will only take 1-2 days.

The flow rate (typically: liters per minute), at which a blower supplies air or another respiratory gas to the system, depends on the resistance to the flow (also referred to as "static pressure" or "system pressure") that the blower has to overcome.A specific value of the flow rate corresponds to a specific value of the resistance for a specific fan speed (revolutions per minute). A particular type of blower is characterized by a set of curves in a Cartesian space spanned by a first axis, each particular point whereof corresponds to a particular value of the flow rate, and a second axis, of which each particular point corresponds to a particular value of the resistance . Each specific one of the curves corresponds to a specific value of the fan speed. For, e.g., a radial blower, the curves are largely uniform, and offset with regard to one another in the direction of the second axis. For additional technical information see, e.g., "Fan Fundamentals: Fan Selection, Application-Based Selection, Performance Theory", Rev 2, June 2005, Greenheck Fan Corp.

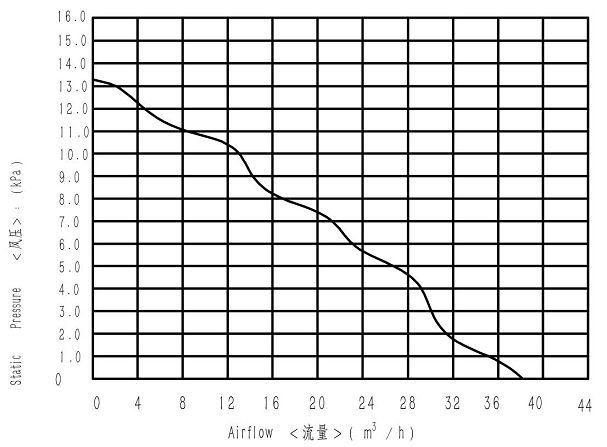

The blower is not an ideal pressure source, because the flow rate decreases with increasing system pressure (or: resistance to the flow). As a result, the flow rate is sensitive to fluctuations in the system pressure. Fig.1 is a diagram 100 of a typical fan curve 102 illustrating this sensitivity. Curve 100 represents the dependence of the flow rate (horizontally, in liters per minute) on the system pressure (vertically, in mbar) at a particular fan speed. In principle, the blower can be used to control the flow rate, but the flow rate varies with varying system pressures. For example, if the system pressure varies between 55 mbar and 60 mbar, the flow rate fluctuates between 5 l/sec and 40 l/sec in the example illustrated.

Our company has many well-relational and stable cooperative manufacturers at home and abroad and excellent sales personnel to provide customers with better Electric DC High Flow Fans Centrifugal Blower Ocean Marine Blowers solutions. Over the years, it is not so much that we have achieved countless customers, but that our customers have made us. We always keeping up with the domestic and foreign industry trends and keeping pace with international technology.
