High Quality Portable Leaf Blower Ebv260

High Quality Portable Leaf Blower Ebv260

24v dc volt high pressure portable vacum cleaner suction blower fan with brushless motor. Suitable for vacuum machine/fuel cell/medical equipment and inflatables.
Send Inquiry

Product Introduction

In business, we always adhere to the principle that quality is life and provide high-quality brushless blower, high pressure air blowers, 24v dc electric motor for the society. Over the years, relying on superb technology and professional services, our company has grown rapidly in the industry. Looking forward to the future, we are determined to work hand in hand with old and new friends from all walks of life.

Portable vacum cleaner suction blower WS10690-24-200-X300

24v dc volt high pressure portable vacum cleaner suction blower fan with brushless motor. Suitable for vacuum machine/fuel cell/medical equipment and inflatables. We can supply standard drivers for this blower. If you want to design your own driver, you can confirm with us.

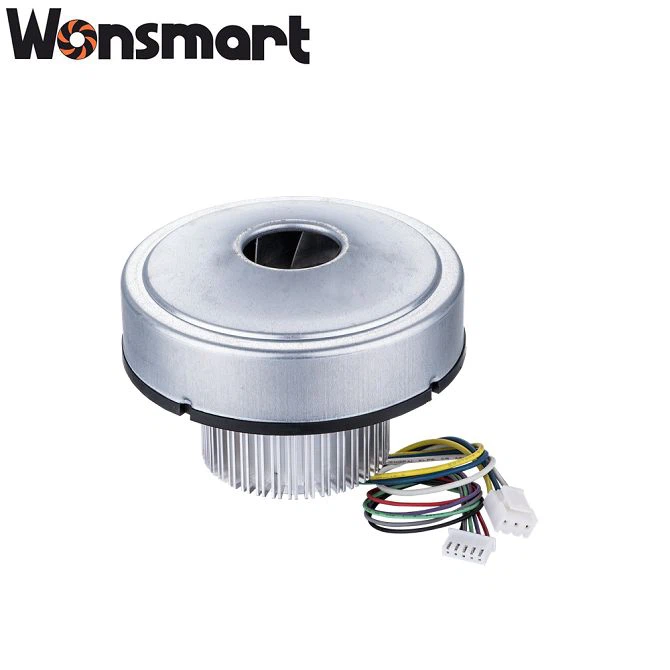

WS10690-24-200-X200

WS10690-24-200-X200



Blower features

Brand name: Wonsmart

High pressure with dc brushless motor

Blower type: Centrifugal fan

Voltage: 24 vdc

Bearing: NMB ball bearing

Type: Centrifugal Fan

Applicable Industries: Manufacturing Plant

Electric Current Type: DC

Blade Material: aluminium

Mounting: Ceiling Fan

Place of Origin:Zhejiang, China

Voltage:24VDC

Certification: CE, RoHS, REACH, ETL

Warranty: 1 Year

After-sales Service Provided: Online support

Life time(MTTF): >20,000hours (under 25 degree C)

Weight: 430 grams

Housing material:PC

Unit size: D106*H77.5mm

Motor type:Three Phase DC Brushless Motor

Controller: external

Static pressure: 7kPa

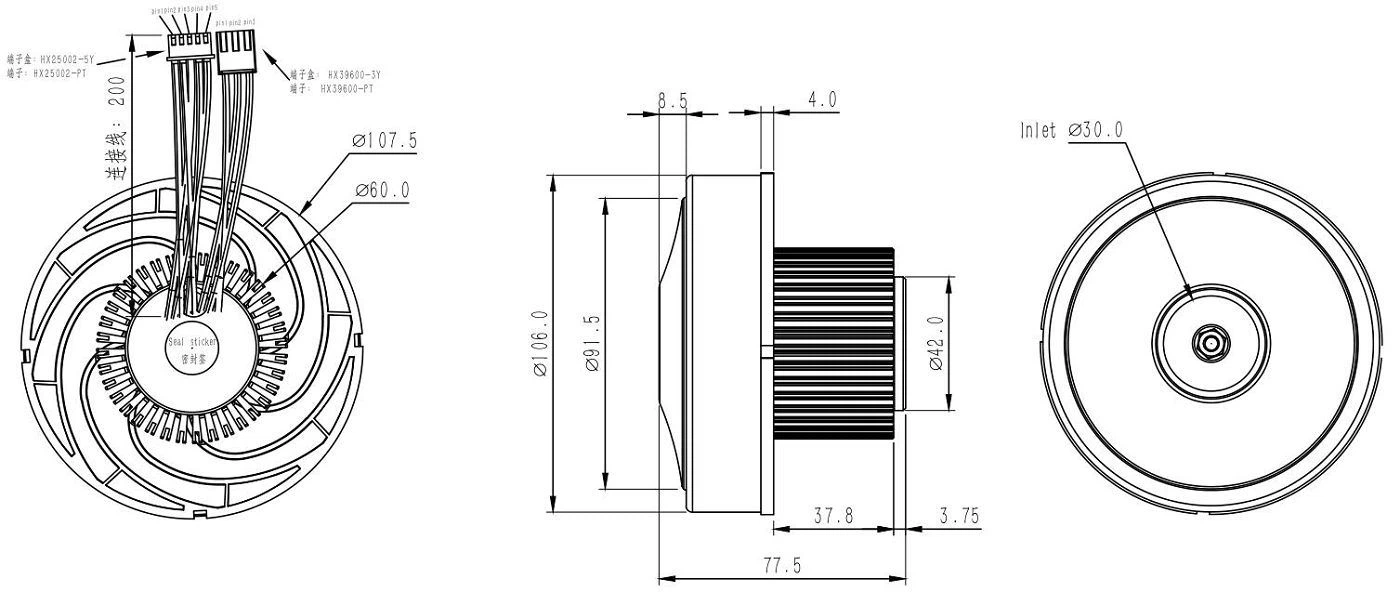

Drawing

16-1(001)

Blower Performance

WS10690-24-200-X300 blower can reach maximum 100m3/h airflow at 0 kpa pressure and maximum 7 kpa static pressure.It has maximum output air power when this blower run at 4.5kPa resistance if we set 100% PWM, It has maximum efficiency when this blower run at 4.5kPa resistance if we set 100% PWM.Other load point performance refer to below P-Q curve:

5

DC brushless blower advantage

(1)WS10690-24-200-X300 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 20,000hours at 20degree C environmental temperature

(2)This blower needs no maintence

(3)This blower drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily.

(4)Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.

Applications

The Portable Vacuum Cleaner Suction Blower WS10690-24-200-X300 is a game-changer in the world of cleaning. With its powerful suction and versatility, it can be used on all types of surfaces, from carpets to hardwood floors. This device is a must-have for anyone who wants to keep their home or office spotlessly clean.



One of the best features of the Portable Vacuum Cleaner Suction Blower WS10690-24-200-X300 is its lightweight and compact design. This makes it easy to carry around and use in different locations. Whether you need to clean your car, your sofa or your curtains, this device can reach every nook and cranny, leaving no dust or dirt behind.



Another great advantage of the Portable Vacuum Cleaner Suction Blower WS10690-24-200-X300 is its high suction power. It can pick up even the tiniest particles, including pet hair, pollen and dust mites. This means that your home or office will be free from allergens and other irritants that can cause health problems.



One of the most impressive aspects of the Portable Vacuum Cleaner Suction Blower WS10690-24-200-X300 is its versatility. It comes with a range of accessories that allow you to clean different surfaces with ease. From crevice tools to dust brushes, this device has everything you need to achieve a deep and thorough clean.



Overall, the Portable Vacuum Cleaner Suction Blower WS10690-24-200-X300 is a must-have for anyone who wants to keep their home or office clean and healthy. With its powerful suction, compact design and range of accessories, it is the perfect tool for tackling even the toughest cleaning jobs. So why not invest in one today and see the difference it can make to your cleaning routine?

How to use the blower correctly:

This blower can run at CCW direction only.Reverse the impeller running direction can not change the air direction.

Filter onto the inlet to protect the blower from dust and water.

Keep the environmental temperature as low as possible to make the blower life time longer.

FAQ:

Q: When can I get the price?
A: Usually we quote within 8 hours after we get your inquiry.

Q: What's your MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer's exact situation.

Q: How long is your delivery time?

A: The general delivery time is 20-30 days after receiving your order confirmation. Another case, it will only take 1-2 days if we have the goods in stock.

Brushless motor commutation can be implemented in software using a microcontroller, or may alternatively be implemented using analog or digital circuits. Commutation with electronics instead of brushes allows for greater flexibility and capabilities not available with brushed DC motors, including speed limiting, microstepping operation for slow and fine motion control, and a holding torque when stationary. Controller software can be customized to the specific motor being used in the application, resulting in greater commutation efficiency.

The maximum power that can be applied to a brushless motor is limited almost exclusively by heat;[citation needed] too much heat weakens the magnets and will damage the windings' insulation.
